Vacuum Load Break Switch Kampa FZN25-12 High Quality With Fuse Wholesaler

Name: Vacuum Load Break Switch Kampa FZN2512 High Quality With Fuse Wholesaler
Brand: Kampa
Price: 638.00 USD

Buy cheap Vacuum Load Break Switch Kampa FZN25-12 High Quality With Fuse Wholesaler product

Place of Origin : Zhejiang, China

Brand Name : Kampa

Model Number : FZN25-12

Product name : High Quality Vacuum Load Break Switch FZN25-12 With Fuse

Type : high voltage vacuum switch, Vacuum

Rated voltage : 12KV

Rated current : 630A

Phase : 3

Poles Number : 3

Packaging Details : Normal package,one pcs one cartoon.

Port : Ningbo

Supply Ability : 1000 Piece/Pieces per Month

Price : $638.00 - $698.00/Sets

Contact Now

Vacuum Load Break Switch Kampa FZN25-12 High Quality With Fuse Wholesaler

FZN25, FZRN25 vacuum load switch combination units, for three-phase AC 50Hz ring network power and industrial power equipment for load control and short circuit protection purposes, load switch division and load, closed Loop current, no load transformer cable charging current. Switchgear can be up to the rated short-circuit breaking current of any current. Fracture separation using direct-action and vacuum arc chamber linkage. With manual and electric functions.

Main Technical Parameter:

NO.	Item	Unit	Value
NO.	Item	Unit	FZN25-12D/T630-20	FZRN25-12D/T125-31.5
1	Rated voltage	KV	12
2	Rated frequency	HZ	50
3	Rated current	A	630	125
4	Rated dynamic(peak value)	KA	50
5	4 seconds heat stable current	KA	20
6	The rating active the breaking current	A	630
7	Rated closed loop breaking current	A	630
8	Rated cable charge breaking current	A	10
9	Rated breaking iding trandformer capacity	KVA	1600
10	Rated shift electric current	A		2000
11	Fuse model			SDLAJ-12 SFLAJ-12
12	Ram output energy	J	2~5(Middle grade)
13	Rated short circuit making electric current	KA	50
14	Earthing switch rated peak withstand current	KA	50
15	Earthing switch 2s thermal stable current	KA	20
16	Auxiliary loop rated voltage	V	~220 ~110
17	Mechanical life	Time	10000

Vacuum Load Break Switch Kampa FZN25-12 High Quality With Fuse Wholesaler

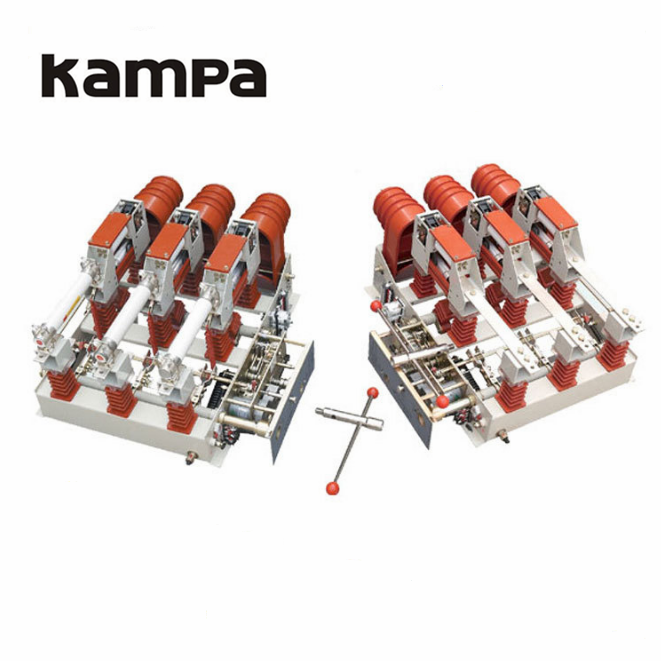

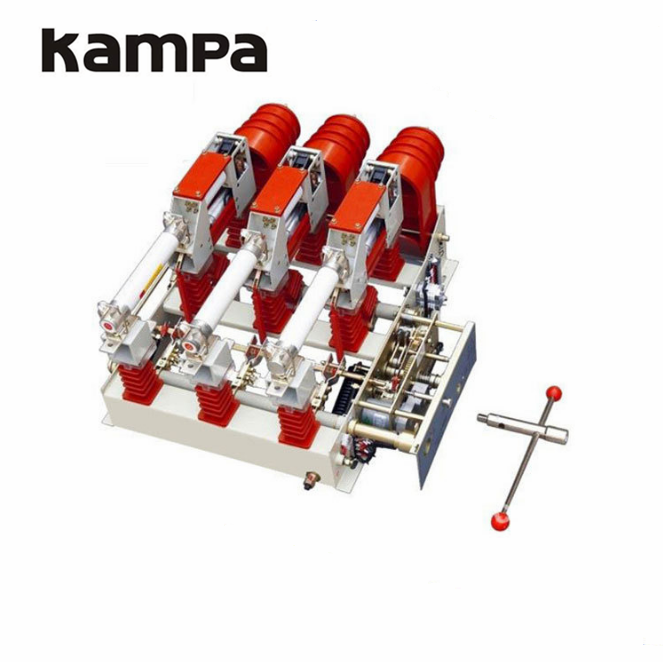

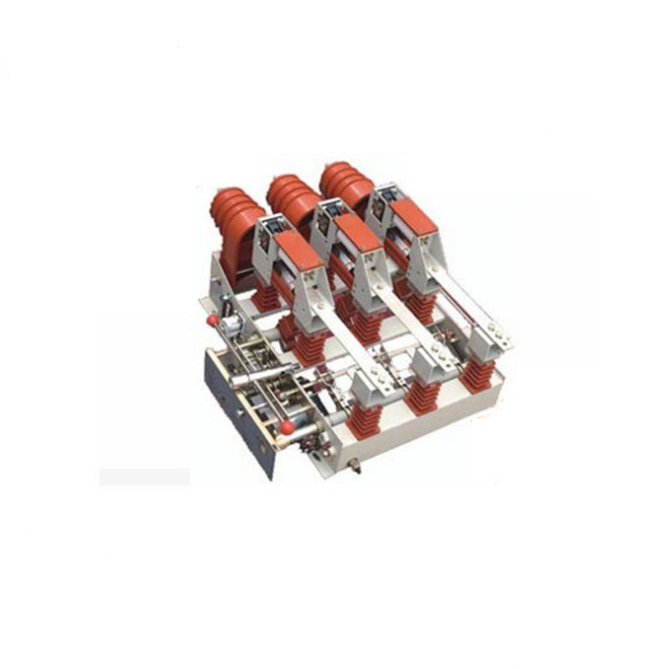

Vacuum Load Break Switch Kampa FZN25-12 High Quality With Fuse Wholesaler Images
