Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

Name: Residual Current Circuit Breakers 63A EZ9R36263 2P 4P
Brand: kampa
Price: 4.00 USD

Buy cheap Residual Current Circuit Breakers 63A EZ9R36263 2P 4P product

Place of Origin : Zhejiang, China, CN;ZHE

Brand Name : kampa

Model Number : easy9

products name : 230/400V EZ easy9 easy9 2 pole 30mA rccb

Type : RCCB, Residual Current

Pole : 2pole/4pole

rccb Type : AC types/A types

Certificate : CE/CB/ISO/CCC

Rated current : 25A/32A/40A/63A

Breaking capacity : 6kA/10kA

Standard : GB10963/IEC60898

Rated frequency : 50/60 Hz

Poles Number : 2P/4P

Packaging Details : standard export carton

Port : ningbo/shanghai

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 1000 Pieces

Price : $4.00 - $8.00/Pieces

Contact Now

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

1. Introduction of Residual Current circuit breaker

Easy 9 Series Residual Current Circuit Breaker (without over- current protection) is suitable for the line of AC50/60Hz, voltage 240V(2 pole)/ 415V(4 pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value it will cut off the power rapidly to protect human safety and prevent the accident from the current leakage. It is applicable to industrial area, commercial area, tall building and civil house.It complies with standard IEC/EN 61008.1 and GB1696.1

Frame class	63A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	16, 25, 40, 63A
Rated residual operating current	10mA, 30mA, 100mA, 300mA, 500mA
Rated residual un-operating current	15, 50 , 150 , 250mA
Sensibility	A& AC
Maximum operating time	IΔn t ≤ 0.1s, 5I Δn t ≤ 0.04s
Rated making and breaking capacity	ln≤50A 500A, ln≤63A 630A
Limiting value of un-operating current	6ln
Rated limiting short-circuit current	6000A/10000A
Pole No.	2P, 4P
Mechanical life	20000
Electric life	4000

2. Pictures of Residual Current circuit breaker

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

3. Production Line of Product

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

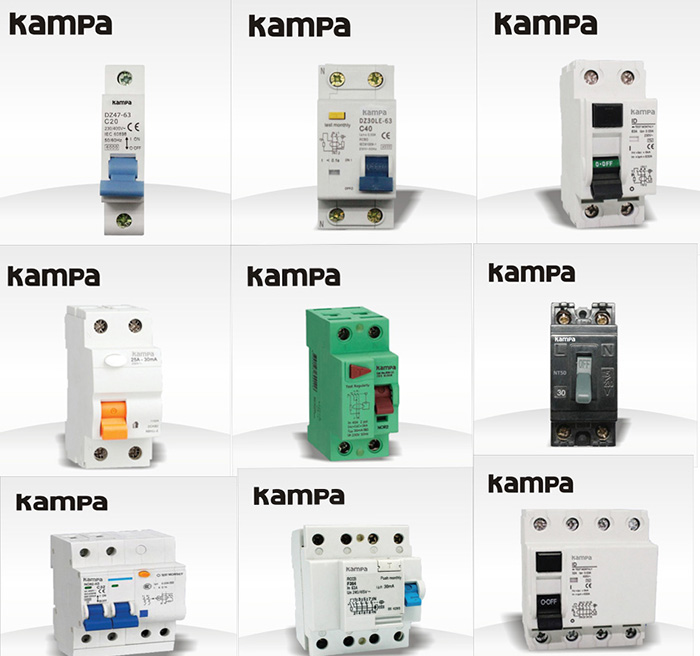

4. More Product for You to Choose

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

5. Packing of Product

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

6. Sample Rooms of Product

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P

Residual Current Circuit Breakers 63A EZ9R36263 2P 4P Images
