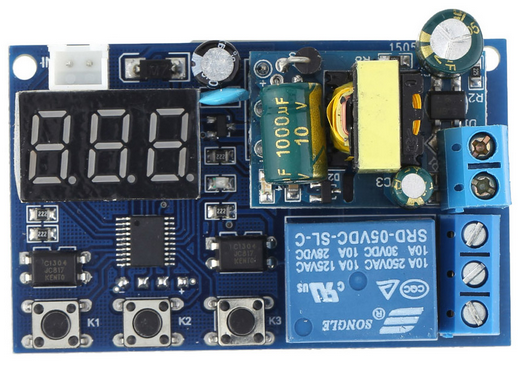

Delay Time Switch Kampa AC 110V 220V Converter Program Switch Self-lock Relay PLC Cycle Timer Module 1.SPECIFICATION
Module Functions:
Typical applications:
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
AC 85-265V LED lighting
Fluorescent lamp
AC 85-265V DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control

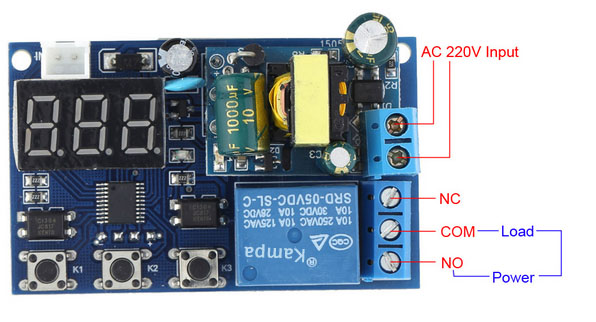

1 AC 85-265V control circuit, Power supply is AC 85-265V , Wiring diagram below. "LOAD" may be LED lights, fans, motors and other AC 85-265V equipment
2 DC 1-110V control circuit,Power supply is AC 85-265V ,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC equipment
3 DC 1-110 V control circuit, Power supply is DC 5V , Wiring diagram below. "LOAD" may be LED lights, fans, motors and other AC DC equipment
Module Size
| 1. Dimensions | 77.5mm * 40mm * 20mm (L * W * H) |
| Screw Size | 4*2.5mm |
| Screw holes center distance | 73.5mm * 36mm |
| Weight | 39g |
2.PICTURE
