T78 10Amp electric PCB relay 24v

Name: T78 10Amp electric PCB relay 24v
Brand: Kampa
Price: 0.30 USD

Place of Origin : Zhejiang, China

Brand Name : Kampa

Model Number : T78

Theory : Electromagnetic Relay

Usage : PCB

Size : Miniature

Protect Feature : Sealed

Contact Load : Low Power

Product name : T78 10Amp electric PCB relay 24v

Type : electric PCB relay

Contact type : 1H,1Z

Contact overload : AC:7A 125V/5A 220V DC:24VDC

Rated coil power : 0.6w

Coil specification : 3-24v dc

Outline dimensions : 15.7*12.3*14mm

Carton size : 420*235*229

Carton number : 3000

MOQ : 50pcs

Packaging Details : electric PCB relay packing:
Standard Export Carton for 500pcs

Port : Ningbo/Shanghai

Supply Ability : 100000 Piece/Pieces per Month

Price : $0.30 - $1.00/Pieces

Contact Now

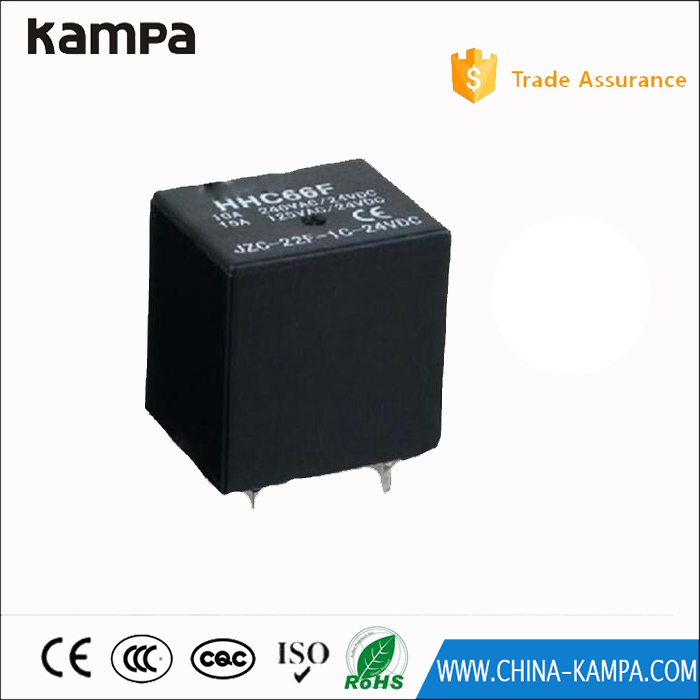

T78 10Amp electric PCB relay 24v 1.Pictures

T78 10Amp electric PCB relay 24v

2.Technical info. of PCB power relay

Type	T78
Contact type	1H,1Z
Contact overload	AC:7A 125V/5A 220V DC:24VDC
Rated coil power	0.6w
Coil specification	3-24v dc
Outline dimensions	15.712.314mm
Carton size	420235229
Carton number	3000
Net weight	17Kg
Gross weight	18kg

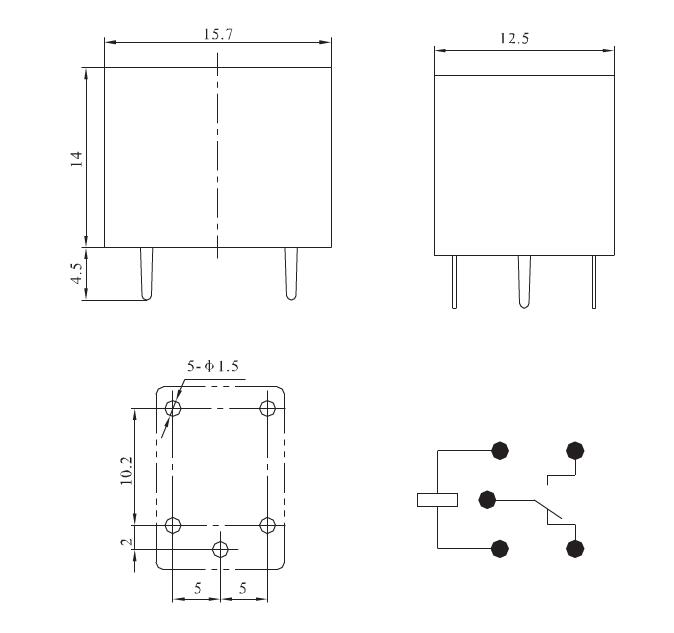

3.Dimension of T78 PCB Relay

T78 10Amp electric PCB relay 24v

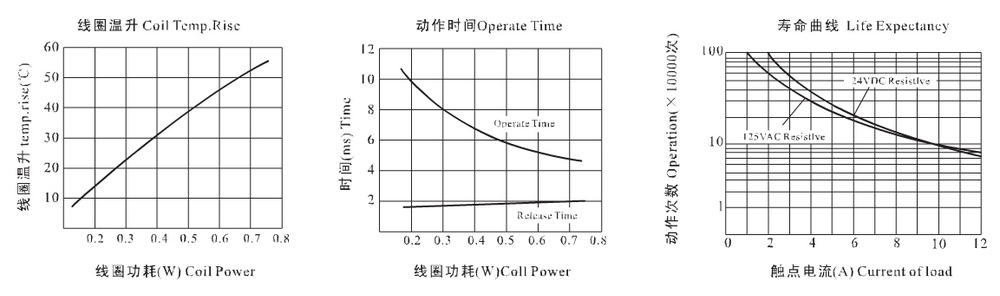

4. Performance graph
