HFV6-P/012HS-3 12VDC 30A 4Pin Power Relay and Automotive Relays

Name: HFV6P012HS3 12VDC 30A 4Pin Power Relay and Automotive Relays
Brand: Kampa
Price: 0.30 USD

Buy cheap HFV6-P/012HS-3 12VDC 30A 4Pin Power Relay and Automotive Relays product

Place of Origin : Zhejiang, China

Brand Name : Kampa

Model Number : HFV6

Theory : Voltage Relay

Usage : AUTO

Size : Miniature

Protect Feature : Sealed

Contact Load : Low Power

Rated voltage : 12VDC.24VDC

Contact type : 1A,1C

Contact material : AgSno2

Max rated switch current : 30A

Max rated switch Voltage : 27VDC

Insulation resistance : 100MΩ

Temperature range : -40℃~+85℃

Action Time : 10MS/10MS

Packaging Details : Package Size: 5cm x 5cm x 8cm (1.97in x 1.97in x 3.15in)
Package Weight: 3.000kg (6.61lb.)

Port : Ningbo/Shanghai

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 50 Pieces

Price : $0.30 - $1.00/Pieces

Contact Now

HFV6-P/012HS-3 12VDC 30A 4Pin Power Relay and Automotive Relays

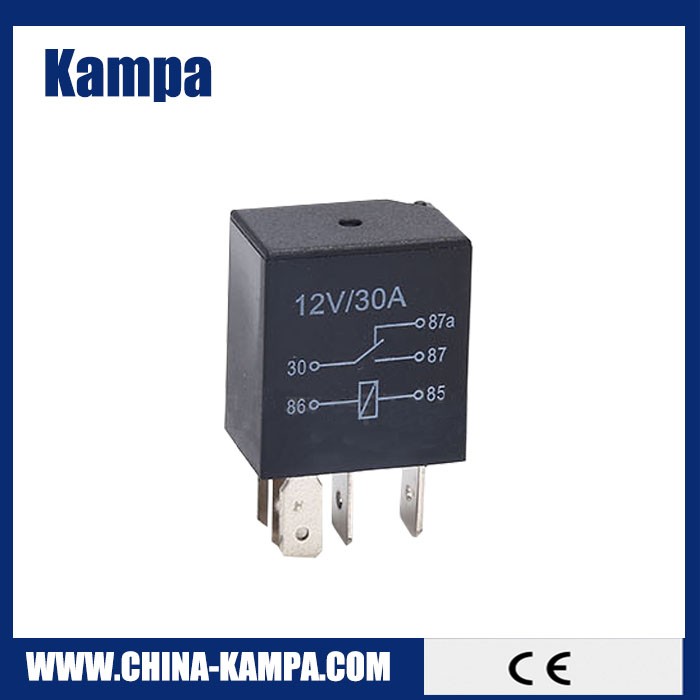

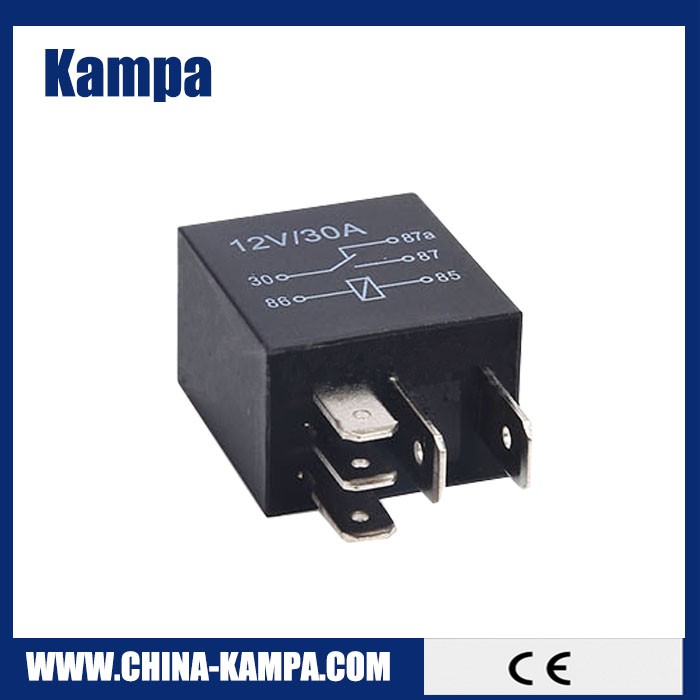

1.Picture

HFV6-P/012HS-3 12VDC 30A 4Pin Power Relay and Automotive Relays

2.Description

Feature
30A Contact capacity	STSP

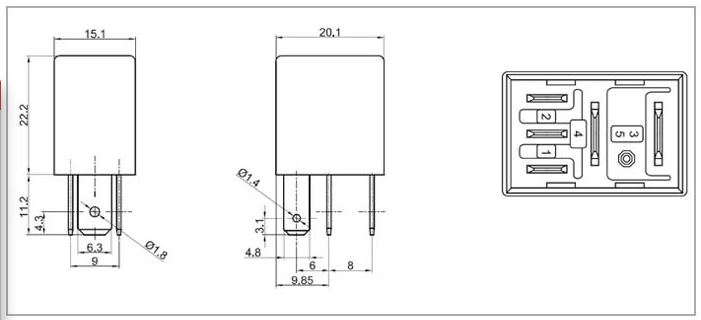

Dust cover type	*Dimension:2315.525.4*

Brand	kampa	Name	FLS823
Rated voltage	12V 24V	Coil power	1.6W 1.8W
Contact type	1A,1C	Contact material	AgSno2
Max Rated switch current	30A	Max Rated switch voltage	27VDC
Insulation resistance	100MΩ	Dieletric Strength	500VDC
Temperature range	-40℃~+85℃	Action Time	10MS/10MS
Mechanical life	*11000000**	Eletric life	*1100000**

HFV6-P/012HS-3 12VDC 30A 4Pin Power Relay and Automotive Relays

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.

HFV6-P/012HS-3 12VDC 30A 4Pin Power Relay and Automotive Relays Images
