40A/60A/80A 12v 5PINS DPDT transparent electric auto relay with lamp

Name: 40A60A80A 12v 5PINS DPDT transparent electric auto relay with lamp
Brand: Kampa
Price: 0.30 USD

Buy cheap 40A/60A/80A 12v 5PINS DPDT transparent electric auto relay with lamp product

Place of Origin : Zhejiang, China

Brand Name : Kampa

Model Number : JD1914

Theory : Voltage Relay

Usage : AUTO

Size : Miniature

Protect Feature : Sealed

Contact Load : Low Power

Rated voltage : 12VDC.24VDC

Contact type : 1A,1C

Contact material : AgSno2

Max rated switch current : 40A

Max rated switch Voltage : 27VDC

Insulation resistance : 100MΩ

Temperature range : -40℃~+85℃

Action Time : 10MS/10MS

Packaging Details : Package Size: 5cm x 5cm x 8cm (1.97in x 1.97in x 3.15in)
Package Weight: 3.000kg (6.61lb.)

Port : Ningbo/Shanghai

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 50 Pieces

Price : $0.30 - $1.00/Pieces

Contact Now

40A/60A/80A 12v 5PINS DPDT transparent electric auto relay with lamp

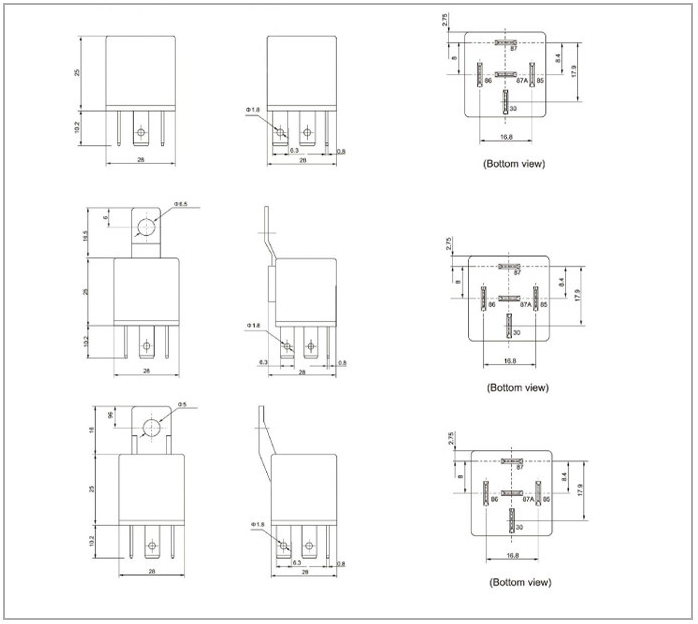

1.Picture

40A/60A/80A 12v 5PINS DPDT transparent electric auto relay with lamp

2.Description

Feature
30A Contact capacity	1A,1C,1C,1U.2A
Dust cover type	*Dimension:282825.0*

Brand	kampa	Name	JD1914
Rated voltage	12V 24V	Coil power	1.6W 1.8W
Contact type	1A,1C,1C,1U.2A	Contact material	AgSno2
Max Rated switch current	40A	Max Rated switch voltage	27VDC
Insulation resistance	100MΩ	Dieletric Strength	500VDC
Temperature range	-40℃~+85℃	Action Time	10MS/10MS
Mechanical life	*11000000**	Eletric life	*1100000**

40A/60A/80A 12v 5PINS DPDT transparent electric auto relay with lamp

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

40A/60A/80A 12v 5PINS DPDT transparent electric auto relay with lamp Images
